# NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry

NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry Ex 3.1 are part of NCERT Solutions for Class 9 Maths. Here we have given NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry Ex 3.1.

## NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry Ex 3.1

### Ex 3.1 Class 9 Maths Question 1.

How will you describe the position of a table lamp on your study table to another person?

**Solution:**

To describe the position of a table lamp placed on the table, let us consider the table lamp as P and the table as a plane.

Now choose two perpendicular edges of the table as the axes OX and OY.

Measure the perpendicular distance ‘a’cm of P (lamp) from OY. Measure the perpendicular distance ‘b’ cm of P (lamp) from OX.

Thus, the position of the table lamp P is described by the ordered pair (a, b).

### Ex 3.1 Class 9 Maths Question 2.

(Street Plan): A city has two main roads which cross each other at the centre of the city. These two roads are along the North-South direction and East-West direction. All other streets of the city run parallel to these roads and are 200 m apart. There are 5 streets in each direction. Using 1 cm = 200 m, draw a model of the city on your notebook. Represent the roads/streets by single lines.

There are many cross-streets in your model. A particular cross-street is made by two streets, one running in the North-South direction and another in the East-West direction. Each cross street is referred to in the following manner: If the 2^{nd} street running in the North-South direction and 5^{th} in the East-West direction meet at some crossing, then we will call this cross-street (2,5). Using this convention, find:

(i) how many cross-streets can be referred to as (4,3).

(ii) how many cross-streets can be referred to as (3,4)./

**Solution:**

(i) A unique cross street as shown by the point A(4, 3).

(ii) A unique cross street as shown by the point B(3,4).

The two cross streets are uniquely found because of the two reference lines we have used for locating them.

## NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry Ex 3.2

### Ex 3.2 Class 9 Maths Question 1.

Write the answer of each of the following questions:

(i) What is the name of horizontal and the vertical lines drawn to determine the position of any point in the Cartesian plane?

(ii) What is the name of each part of the plane formed by these two lines?

(iii) Write the name of the point where these two lines intersect.

**Solution:**

(i) The horizontal line: x – axis and the vertical line: y – axis.

(ii) Each part is called "Quadrant".

(iii) Origin

### Ex 3.2 Class 9 Maths Question 2.

See the given figure and write the following:

(i) The coordinates of B.

(ii) The coordinates of C.

(iii) The point identified by the coordinates (-3,-5).

(iv) The point identified by the coordinates (2,-4).

(v) The abscissa of the point D.

(vi) The ordinate of the point H.

(vii) The coordinates of the point L.

(viii) The coordinates of the point M.

**Solution:**

From the figure, we have

(i) The coordinates of B are (-5,2).

(ii) The coordinates of C are (5, -5).

(iii) The point E is identified by the coordinates (-3,-5).

(iv) The point G is identified by the coordinates (2,-4).

(v) The abscissa of the point D is 6.

(vi) The ordinate of the point H is -3.

(vii) The coordinates of the point L are (0,5).

(viii) The coordinates of the point M are (-3,0).

### NCERT Solutions for Class 9 Maths Chapter 3 Coordinate Geometry Ex 3.3

### Ex 3.3 Class 9 Maths Question 1.

In which quadrant or on which axis do each of the points (-2, 4),(3, -1), (-1, 0),(1, 2) and (-3, -5) lie? Verify your answer by locating them on the Cartesian plane.

**Solution:**

The point (-2, 4) is having negative abscissa and positive ordinate.

∴ (-2,4) lies in the 2^{nd} quadrant.

The point (3, -1) is having positive abscissa and negative ordinate.

∴ (3, -1) lies in the 4^{th} quadrant.

The point (-1, 0) is having negative abscissa and zero ordinate.

∴ The point (-1, 0) lies on the negative x-axis.

The point (1, 2) is having the abscissa as well as ordinate positive.

∴ Point (1,2) lies in the 1^{st} quadrant.

The point (-3, -5) is having the abscissa as well as ordinate negative.

∴ Point (-3, -5) lies in the 3rd quadrant.

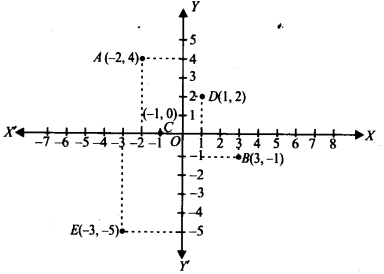

These points are plotted in the Cartesian plane as shown in the following figure as A(-2, 4); B(3, -1); C(-l, 0); D(l, 2) and E (-3, -5).

### Ex 3.3 Class 9 Maths Question 2.

Plot the points (x, y) given in the following table on the plane, choosing suitable units of distance on the axes.

**Solution:**

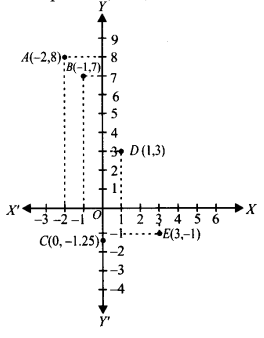

The given points are (-2, 8), (-1, 7), (0, -1.25), (1,3) and (3, -1).

To plot these points:

(i) We draw X'OX and YOY' as axes

(ii) We choose suitable units of distance on the axes.

(iii) To plot (-2,8), we start from O, take (-2) units on x-axis and then (+8) units on y – axis. We mark the point as A (-2, 8).

(iv) To plot (-1,7), we start from O, take (-1) units on x-axis and then (+7) units on the y – axis. We mark the point as B(-1, 7).

(v) To plot (0, -1.25), we move along 1.25 units below the x-axis on the y – axis and mark the point as C(0, -1.25).

(vi) To plot (1, 3), we take (+1) unit on the x-axis and then (+3) units on the y – axis. We mark the point as D(1, 3).

(vii) To plot (3, -1), we take (+3) units on the x-axis and then (-1) unit on the y – axis. We mark the point E(3, -1).
